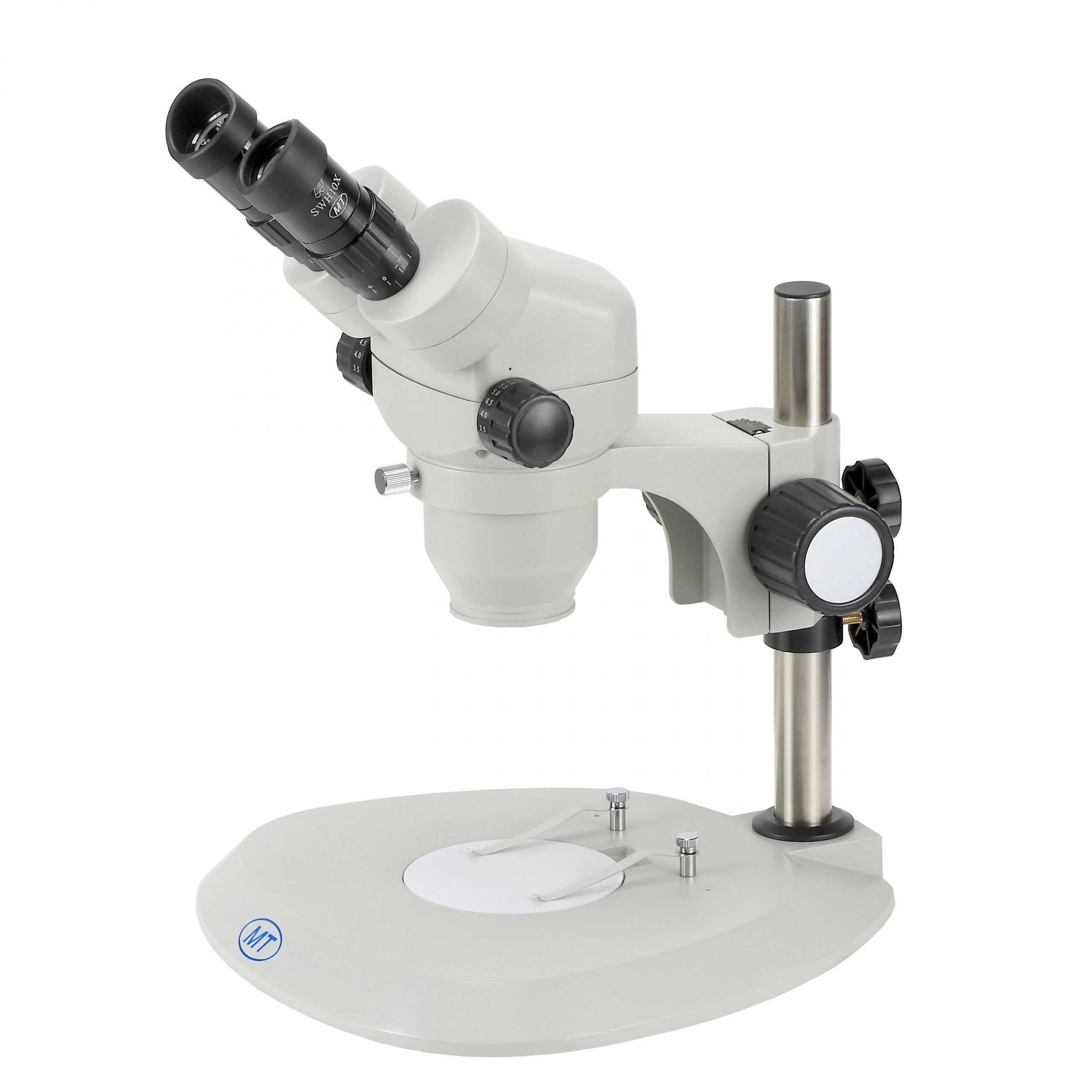

◆ Includes MZS0745(binocular) and MZS0745T(trinocular).
◆ Non-flash in focus course while from high to low magnification
◆ New optical design, recur the best resolution and true color image
◆ Large depth of view, width of visual fields, super long working distance, high cost effective
◆ Extensively applied in field of modern biology research, semiconductor and other science and technology industry.
Specifications
| Magnification | Total magnification(standard outfits): 7X~45X, Extend total magnification： 270X |
| Eyepiece | SWH10X high eye point & extra wide-field eyepiece ,FOV Φ23mm |
| Eyetubes | Inclined 45° |
| WD | 110mm |
| Focus range | 50mm（track stand: 100mm） |
| Interpupillary distance adjustment range(10X eyepiece) | 52mm~76mm |
| Diopter adjustment range | ±6 Diopter |
| The holder and the head matching dimension | Φ76mm |
| Distance between the center of the pole and the center of the holder | 140mm |
| Diameter of the pole | Φ25mm |
| Diameter of the center working stage | Φ95mm |
| Illuminators | Optional illumination:5W fluorescent lamp at the bottom; halogen lamp(6V、10W) on the top. |
| Eyepiece | Item | Main body | Specification of different auxiliary objective | ||||
| 0.37X | 0.5X | 0.7X | 1.5X | 2X | |||
| 10X | Total Mag. | 7X~45X | 2.59X~16.65X | 3.5X~22.5X | 4.9X~31.5X | 10.5X~67.5X | 14X~90X |
| FOV(mm) | Φ32.8~Φ5.1 | Φ88.8~Φ13.8 | Φ65.7~Φ10.2 | Φ46.9~Φ7.3 | Φ21.9~Φ3.4 | Φ16.4~Φ2.6 | |
| 15X | Total Mag. | 10.5X~67.5X | 3.89X~25X | 5.3X~33.8X | 7.4X~47.2X | 15.8X~101.3X | 21X~135X |
| FOV(mm) | Φ24.3~Φ3.8 | Φ65.6~Φ10.2 | Φ48.6~Φ7.6 | Φ34.7~Φ5.4 | Φ16.2~Φ2.5 | Φ12.1~Φ1.9 | |
| 20X | Total Mag. | 14X~90X | 5.18X~33.3X | 7X~45X | 9.8X~63X | 21X~135X | 28X~180X |
| FOV(mm) | Φ20~Φ3.1 | Φ54.1~Φ8.4 | Φ40~Φ6.2 | Φ28.6~Φ4.4 | Φ13.3~Φ2.1 | Φ10~Φ1.6 | |
| 30X | Total Mag. | 21X~135X | 7.77X~50X | 10.5X~67.5X | 14.7X~94.5X | 31.5X~202.5X | 42X~270X |
| FOV(mm) | Φ12.9~Φ2 | Φ34.7~Φ5.4 | Φ25.7~Φ4 | Φ18.4~Φ2.9 | Φ8.6~Φ1.6 | Φ6.4~Φ1 | |
| WD(mm) | 110 | 275 | 195 | 145 | 58 | 35 | |
NOTES:
1. Please use lengthened round post when using 0.37X objective, track stands cannot be used.
2. When 0.5X or lower magnification objective applied, track stands cannot be used.
