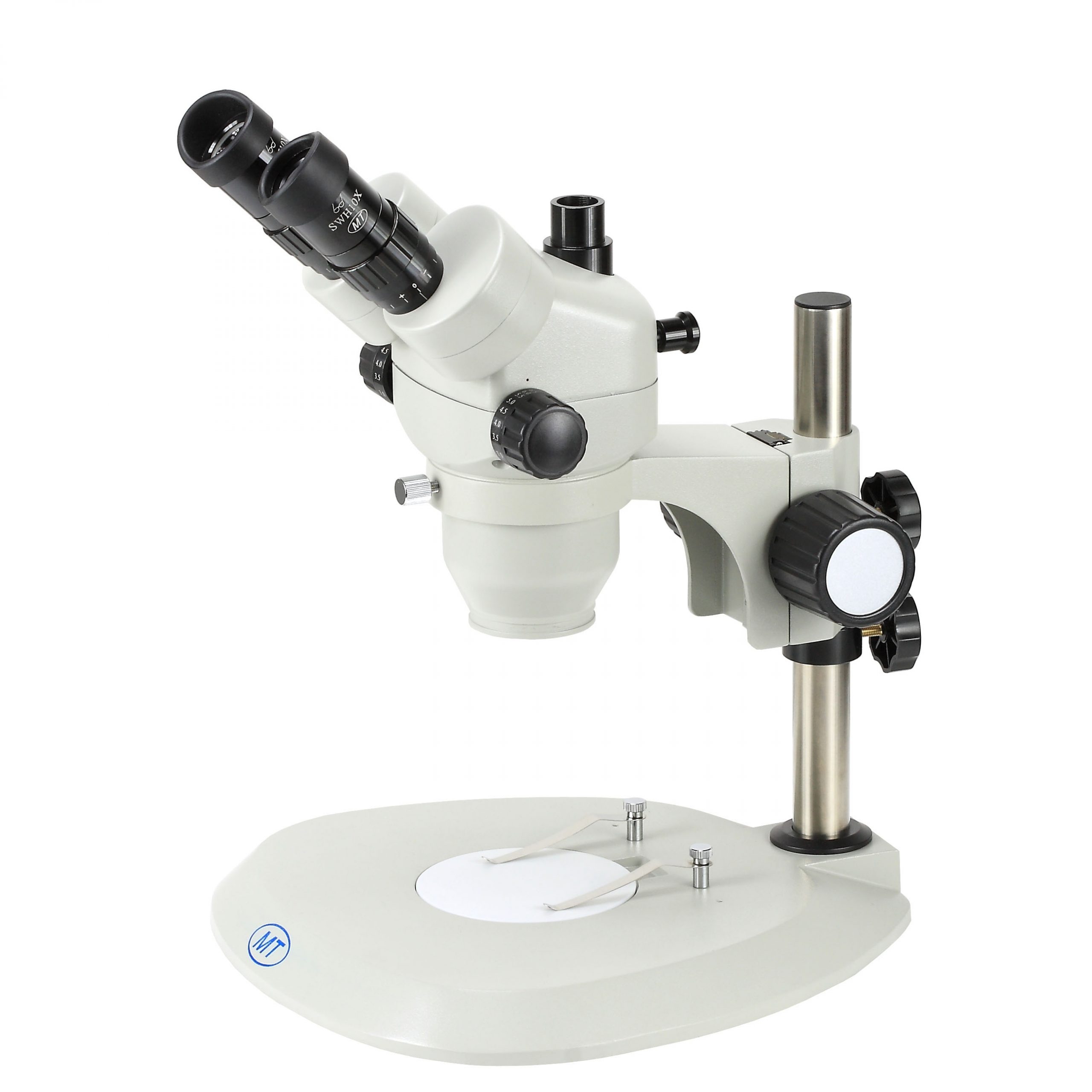

◆ Includes MZS1065(binocular) and MZS1065T(trinocular).
◆ Non-flash in focus course while from high to low magnification
◆ Large depth of view, width of visual fields, super long working distance, high cost effective
◆ Extensively applied in field of modern biology research, semiconductor and other science and technology industry.
Specifications
| Magnification | Total magnification(standard outfits): 10X~65X, Extend total magnification： 390X |
| Eyepiece | SWH10X high eye point & extra wide-field eyepiece ,FOV Φ23mm |
| Eyetubes | Inclined 45° |
| WD | 110mm |
| Interpupillary distance adjustment range(SWH10X) | 52mm~76mm |
| Diopter adjustment range | ±6 Diopter |
| Focus adjustment range | 50mm（Using square post is 100mm） |
| Support and main body matched dimension | Φ76mm |
| Post’ center to Support’ center dimension | 140mm |
| Round post diameter | Φ25mm |
| Center stage diameter | Φ95mm |
| Trinocular， Binocular eyetubes | Binocular, Trinocular eyetubes inclined 45°and main body can be rotated 360° |
| Illuminators | The down illuminator is transmitted illumination of fluorescent lamp(5W),the up illuminator is reflected illumination of halogen lamp(6V、10W). |
Parameters
| Eyepiece | Item | Main body | Specification of different auxiliary objective | ||||
| 0.37X | 0.5X | 0.7X | 1.5X | 2X | |||
| 10X | Total Mag. | 10X~65X | 3.7X~24.1X | 5X~32.5X | 7X~45.5X | 15X~97.5X | 20X~130X |
| FOV(mm) | Φ23~Φ3.5 | Φ62.2~Φ9.6 | Φ46~Φ7.1 | Φ32.9~Φ5.1 | Φ15.3~Φ2.4 | Φ11.5~Φ1.8 | |
| 15X | Total Mag. | 15X~97.5X | 5.55X~36.1X | 7.5X~48.8X | 10.5X~68.3X | 22.5X~146.3X | 30X~195X |
| FOV(mm) | Φ17~Φ2.6 | Φ45.9~Φ7.1 | Φ34~Φ5.2 | Φ24.3~Φ3.7 | Φ11.3~Φ1.7 | Φ8.5~Φ1.3 | |
| 20X | Total Mag. | 20X~130X | 7.4X~48.1X | 10X~65X | 14X~91X | 30X~195X | 40X~260X |
| FOV(mm) | Φ14~Φ2.2 | Φ37.8~Φ5.8 | Φ28~Φ4.3 | Φ20~Φ3.1 | Φ9.3~Φ1.4 | Φ7~Φ1.1 | |
| 30X | Total Mag. | 30X~195X | 11.1X~72.2X | 15X~97.5X | 21X~136.5X | 45X~292.5X | 60X~390X |
| FOV(mm) | Φ9~Φ1.4 | Φ24.3~Φ3.7 | Φ18~Φ2.8 | Φ12.9~Φ2 | Φ6~Φ0.9 | Φ4.5~Φ0.7 | |
| WD(mm) | 110 | 275 | 195 | 145 | 58 | 35 | |
NOTES:
1. Please use lengthened round post when using 0.37X objective, track stands cannot be used.
2. When 0.5X or lower magnification objective applied, track stands cannot be used.
